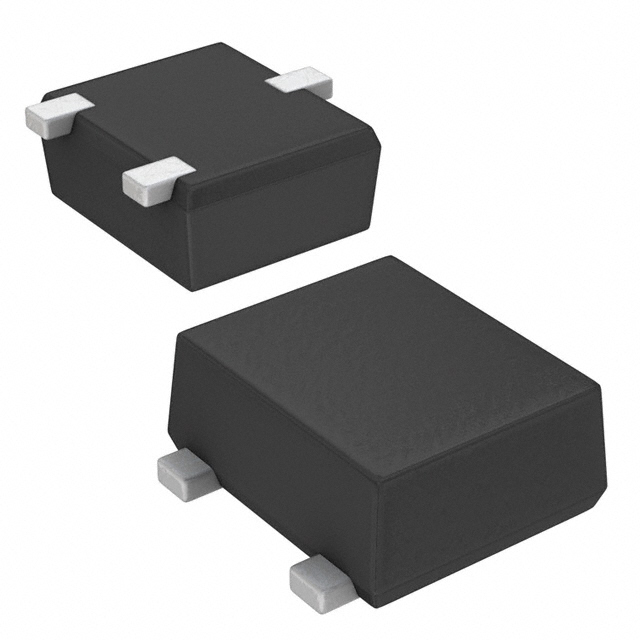

2SC4098T106P
ROHM Semiconductor
Package: Tape & Reel (TR)
Description: RF TRANS NPN 25V 300MHZ UMT3
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | - |
|---|---|
| Part Status | Last Time Buy |
| Power - Max | 200mW |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 300MHz |
| Supplier Device Package | UMT3 |
| Noise Figure (dB Typ @ f) | - |
| Current - Collector (Ic) (Max) | 50mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 82 @ 1mA, 6V |
| Voltage - Collector Emitter Breakdown (Max) | 25V |
