2SC1009A-T1B-AT
Renesas Electronics Corporation
Package: Bulk
Description: RF TRANS NPN 30V 250MHZ SC-59
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | - |
|---|---|
| Grade | - |
| Part Status | Active |
| Power - Max | 150mW |
| Mounting Type | Surface Mount |
| Qualification | - |

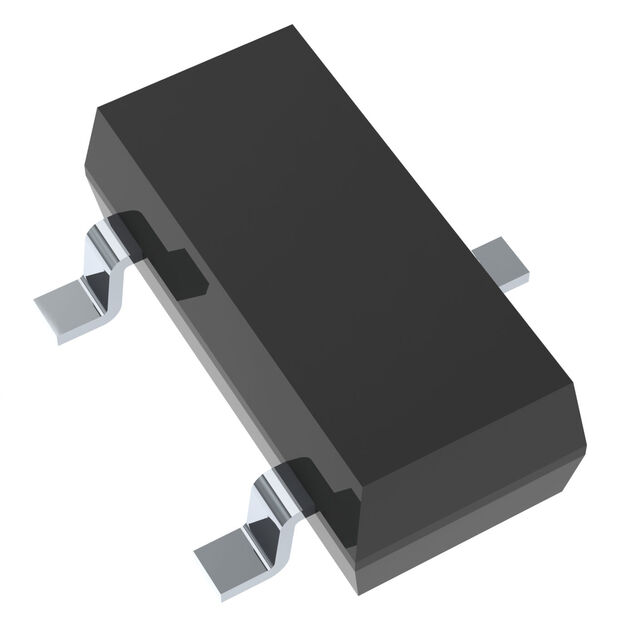

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Transistor Type | NPN |
| Operating Temperature | 125°C (TJ) |
| Frequency - Transition | 250MHz |
| Supplier Device Package | SC-59 |
| Noise Figure (dB Typ @ f) | 2dB @ 1MHz |
| Current - Collector (Ic) (Max) | 50mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 1mA, 6V |
| Voltage - Collector Emitter Breakdown (Max) | 30V |
