2N6348AG
onsemi
Package: Bulk

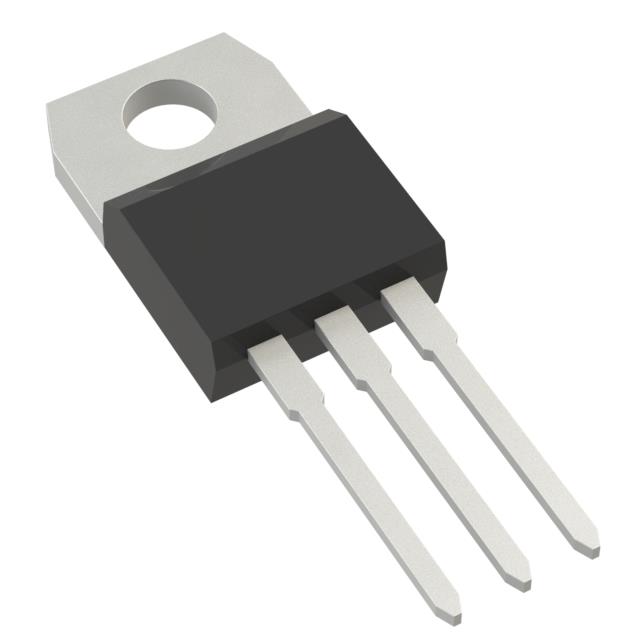

Description: TRIAC 600V 12A TO220AB
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Triac Type | Standard |
|---|---|
| Part Status | Active |
| Configuration | Single |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Voltage - Off State | 600 V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | TO-220AB |
| Current - Hold (Ih) (Max) | 40 mA |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 12 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 100A @ 60Hz |
